TELEPHONE & DATA SOCKETS

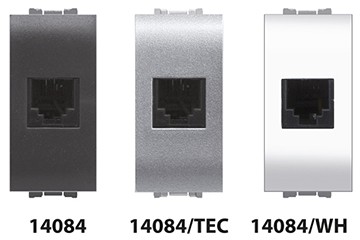

RJ11 telephone socket

Art.14084 – Art.14084/TEC – Art.14084/WH
P= 16,5 mm
Box = 10 pz – Package = 120 pz

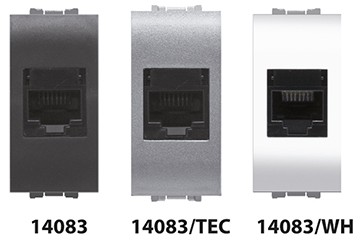

RJ45 ethernet socket cat.6

Art.14083 – Art.14083/TEC – Art.14083/WH
P= 18,5 mm
Box = 10 pz – Package = 120 pz

Keystone adapter

Art.14083/2 – Art.14083/2/TEC – Art.14083/2/WH
P= 10,5 mm
Box = 10 pz – Package = 240 pz

TV & SAT SOCKETS

Direct TV socket

Art.14048/1 – Art.14048/1/TEC – Art.14048/1/WH
Female connector D mm 9,5
Signal attenuation 0 dB VHF-UHF (40-860MHz)
P= 22,0 mm
Box = 20 pz – Package = 240 pz

Direct TV socket

Art.14048/1M – Art.14048/1M/TEC – Art.14048/1M/WH
Male connector
Signal attenuation 0 dB VHF-UHF (40-860MHz)
P= 22,5 mm
Box = 20 pz – Package = 240 pz

Terminal closing – impedence 75 Ohm

Art.2048/3
Diameter 6,0 mm
Box = 20 pz

Satellite TV SAT socket terminal

Art.14051/SAT – Art.14051SAT/TEC – Art.14051SAT/WH
Male connector (IEC 169-2)
Totally shielded for traditional or satellite TV systems
Direct type – Attenuation 0 dB – TV-SAT (40-2150MHz)
P= 34,0 mm
Box = 10 pz – Package = 240 pz

Satellite TV SAT socket terminal

Art.14052/SAT – Art.14052SAT/TEC – Art.14052SAT/WH
Female connector F (IEC 169-24)
Totally shielded for traditional or satellite TV systems
Direct type – Attenuation 0 dB – TV-SAT (40-2150MHz)
P= 32,0 mm
Box = 10 pz – Package = 240 pz

Satellite TV SAT socket F-type

Art.14053/SAT – Art.14053SAT/TEC – Art.14053SAT/WH
Female connector (IEC 169-24) max 2400 MHz
P= 34,0 mm
Box = 10 pz – Package = 240 pz

Demix TV SAT socket terminal

Art.14055 – Art.14055/TEC – Art.14055/WH

Male connector (IEC 169-2)
Totally shielded for traditional or satellite TV systems
Direct type – Attenuation 0 dB – TV-SAT (40-2150MHz)

Female connector (IEC 169-24)
Totally shielded for traditional or satellite TV systems
Direct type – Attenuation 0 dB – TV-SAT (40-2150MHz)

P= 30,5 mm
Box = 10 pz – Package = 240 pz
